Built for Ram 2500/3500 owners who tow heavy and run dirt roads, this ICON suspension system is part of the suspension lineup we carry for trail, desert and overland builds.
Specs
-
Brand: ICON Vehicle Dynamics
-
Type: Lift Kit
-
Part numbers:
- Stage 1: K214500T
- Stage 2: K214501T
- Stage 3: K214502T
- Stage 4: K214503T
- Stage 5: K214504T
-
Fits:
- 2003-2008 Dodge Ram 2500
- 2003-2008 Dodge Ram 3500

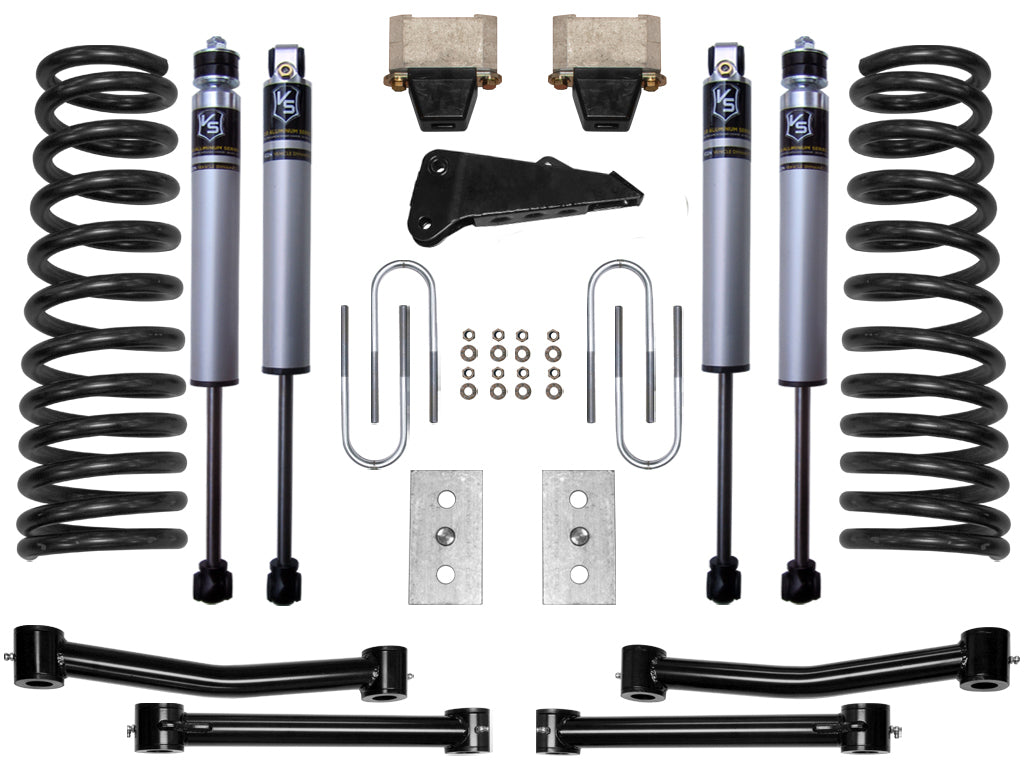

Stage 1
2003-2008 Ram 2500/3500 4.5" Stage 1 Suspension System utilizes the same technology as the 2.5" systems while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 1 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bumpstops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, rear 2.5" lift blocks with u-bolts, and 2.0 Aluminum Series smooth body shocks. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This entry level system with tubular link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

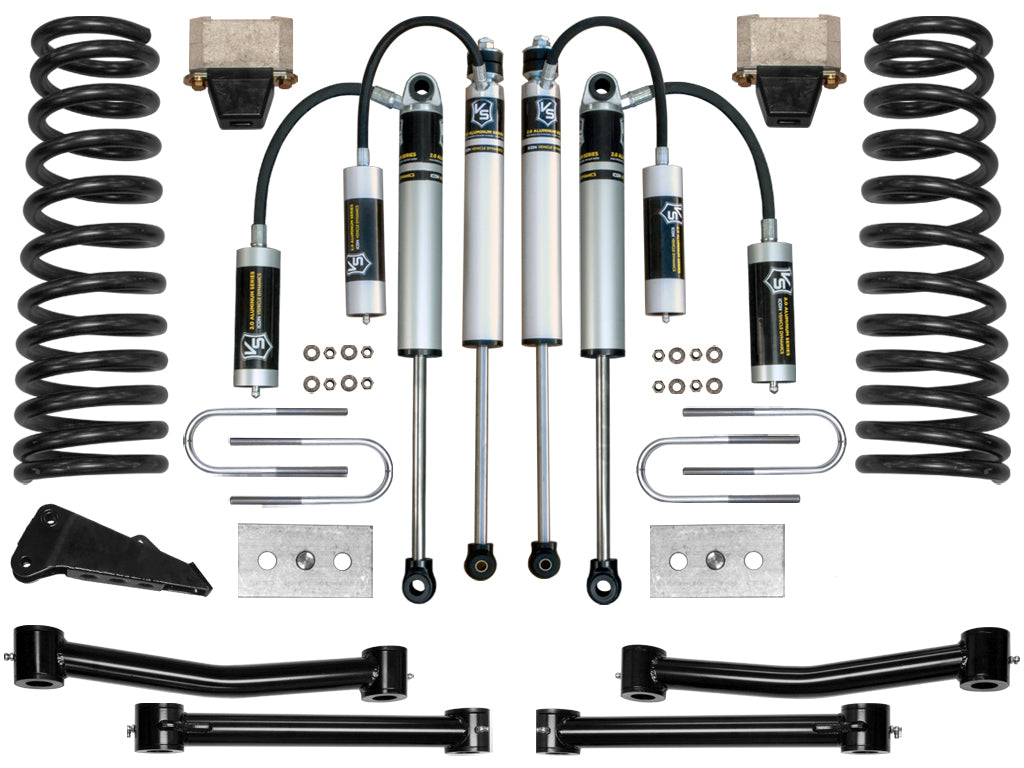

Stage 2
2003-2008 Ram 2500/3500 4.5 Inch Stage 2 Suspension System utilizes the same technology as the 2.5 inch systems while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. Remote reservoir shocks will extend performance of the kit by increasing the duration of consistent damping regardless of situation. ICON steel upper and lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This performance system with link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

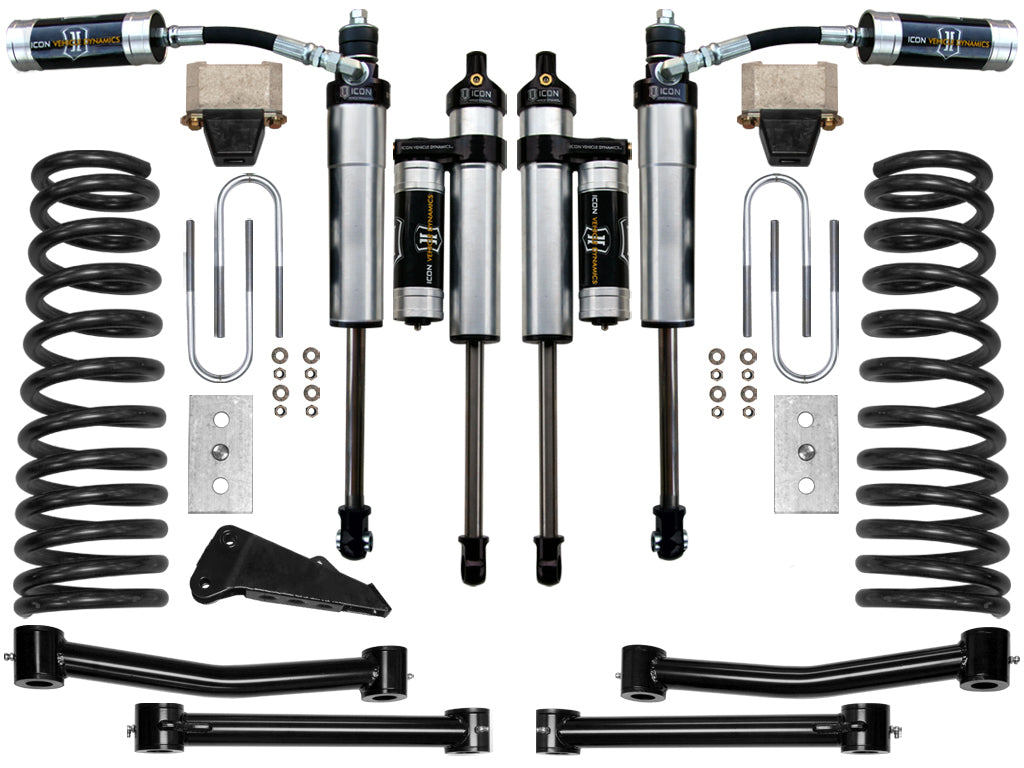

Stage 3
2003-2008 Ram 2500/3500 4.5“ Stage 3 Suspension System utilizes the same technology as the 2.5 inch systems while adding lift height and ground clearance. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. ICON 2.5 Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap and rod ends, and 7/8" inch shafts for strength. ICON steel upper and lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This mid-level performance system with billet link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

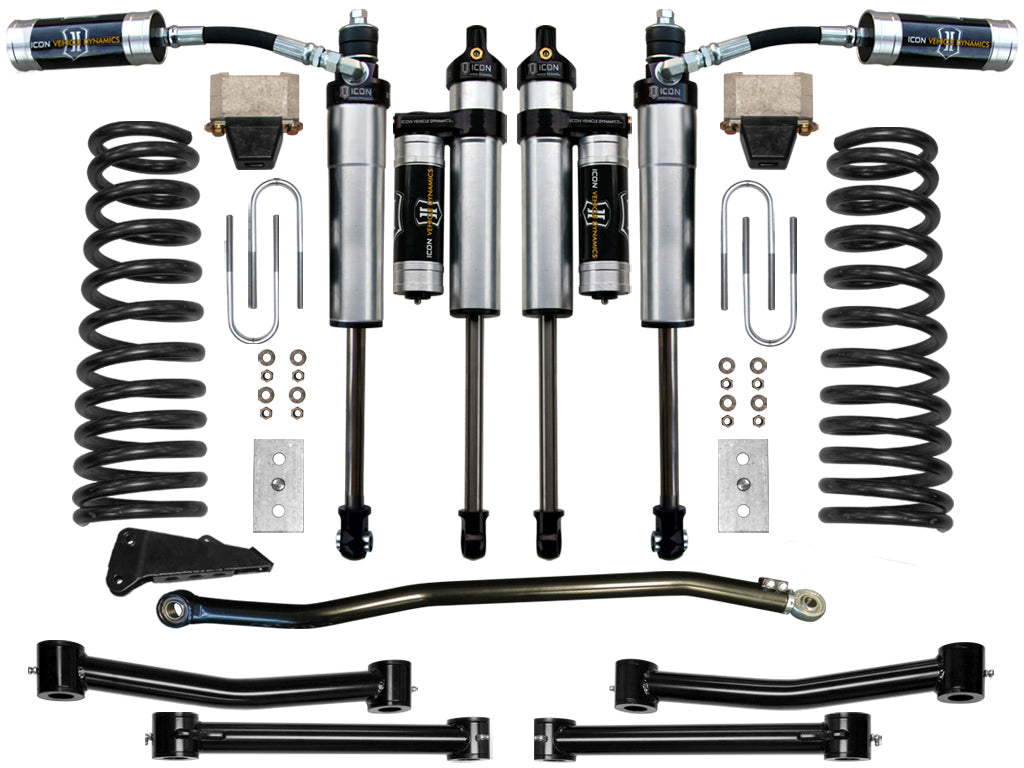

Stage 4
2003-2008 Ram 2500/3500 4.5 Inch Stage 4 Suspension System utilizes the same technology as the 2.5 Inch systems while adding lift height and ground clearance. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. ICON 2.5 Inch Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap and rod ends, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper and lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. The multi leaf expansion pack improves compliance with a more progressive rate. This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

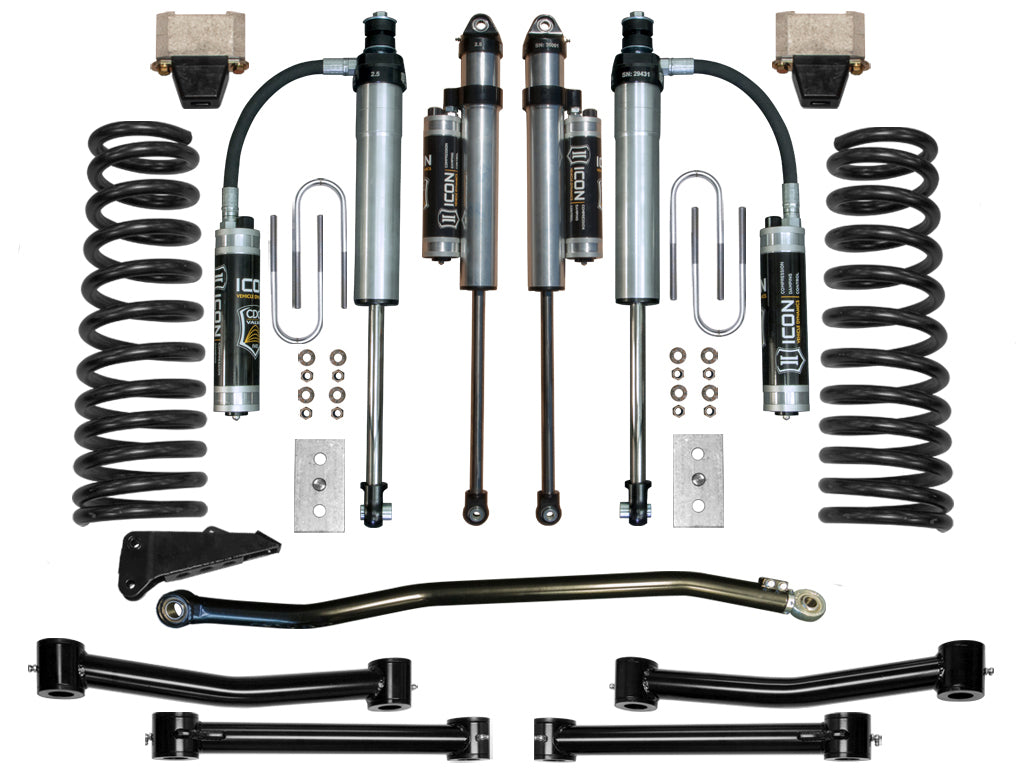

Stage 5
2003-2008 Ram 2500/3500 4.5" Stage 5 Suspension System utilizes the same technology as the 2.5" systems while adding lift height, ground clearance, and user adjustability. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 5 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5 Aluminum Series shocks w/ CDCV, bearing style adjustable track bar, and rear 2.5" lift blocks. ICON 2.5 Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation, and give you the ability to tune the compression damping with the turn of an external knob. These shocks include FK bearings, one-piece impact extruded aluminum cylinders, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
