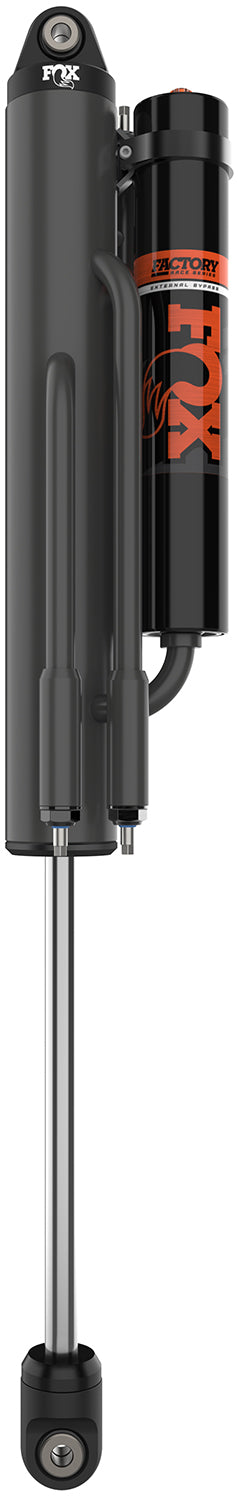

Fox bypass shock for custom and race builds. Confirm the length, travel and mounts against your build before you order.
Specs
-
Part numbers: 981-30-427-R, 981-30-427-L, 981-30-415-R, 981-30-415-L, 981-30-414-R, 981-30-414-L, 981-30-413-R, 981-30-413-L, 981-30-412-R, 981-30-412-L, 981-30-411-R, 981-30-411-L
-
Type: Bypass Shocks
-
Brand: Fox
-
Option: 8 Inch Right Hand / 8 Inch Left Hand / 18 Inch Right Hand / 18 Inch Left Hand / 16 Inch Right Hand / 16 Inch Left Hand / 14 Inch Right Hand / 14 Inch Left Hand / 12 Inch Right Hand / 12 Inch Left Hand / 10 Inch Right Hand / 10 Inch Left Hand
FOX External Bypass shocks have racked up countless wins across the globe over the past 30 years. " In that spirit, we've reitalized our tried-and-true externally, adjustable position sensitive damping archtecture to deliver all-new standards of performance and durability, all while streamlining the production process.
Features and Benefits:
- New proprietary Cerakote protective ceramic coating over zinc plated basecoat
- 17-4 H900 hard chrome plated stainless steel shaft
- Owner serviceable and rebuildable
- Jm92 mil-spec oil developed specifically for off-road racing
- Black Anodized CNC Machined Aluminum Components
Details:
- Diameter: 3.0 Inch
- Location: Right Hand
- Series: Factory Race
- Top: Eyelet
- Travel Length: 7.86 Inch
- Bottom: Eyelet
- Extended Length: 24.46 Inch
- Collapsed Length: 16.6 Inch
- Reservoir Type: Piggyback
- Shock Type: External Bypass
- Material: Steel
- Warranty: 1 Year
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Part #: 981-30-427, 981-30-415, 981-30-414, 981-30-413, 981-30-412, 981-30-411
