Built for F-150 owners who take the truck off the pavement, this Baja Designs fog light kit puts light down low at the bumper.
Specs
- Part numbers: 447699UP, 44-7699
- Wiring: Upfitter, Standard Harness
- Waterproof rating: IP69K
- Fits: Ford F-150. Check the years in the product title.
The Baja Designs Squadron SAE/Squadron Pro fog pocket light kit for the 2021-2023 Ford F-150 trucks without daytime running lights is a premium, high-performance upgrade engineered for both on-road and off-road use.
This all-inclusive LED fog light kit includes one pair of Squadron SAE road-legal fog lights offering 2,420 raw lumens each and one pair of Squadron Pro lights in a versatile Driving/Combo lens pattern producing 4,095 raw lumens each, delivering powerful illumination exactly where you need it.
For convenience and full control, one pair of lights connects to your OEM F-150 fog light switch, while both pairs can be activated via the included toggle switch harness or your factory upfitter switch (depending on what kit you choose). The next-generation Squadron SAE is engineered with advanced aspheric projector optics and cutting-edge LED technology, producing a 56 percent increase in luminous output over previous SAE models.
These lights are SAE J583 compliant, providing a sharp, road-safe beam pattern ideal for fog, dust, rain, and low-visibility conditions. Built to illuminate Zone 1 with a controlled, glare-free cutoff, the Squadron SAE delivers unmatched clarity and safety.
For trail illumination, the Squadron Pros offers lighting into zones 1-4, giving your clarity while staying safe when off the beaten path. Designed specifically for Ford F-150 trucks without the Daytime Running Lights (DRL), this kit is backed by Baja Designs' limited lifetime warranty and a 30-day satisfaction guarantee, giving you total confidence on and off the road.
Note: This kit comes with everything you need to install and is designed to be used on the F-150 Without Daytime Running Lights (DRL). USPTO Reg No. 5,766,659

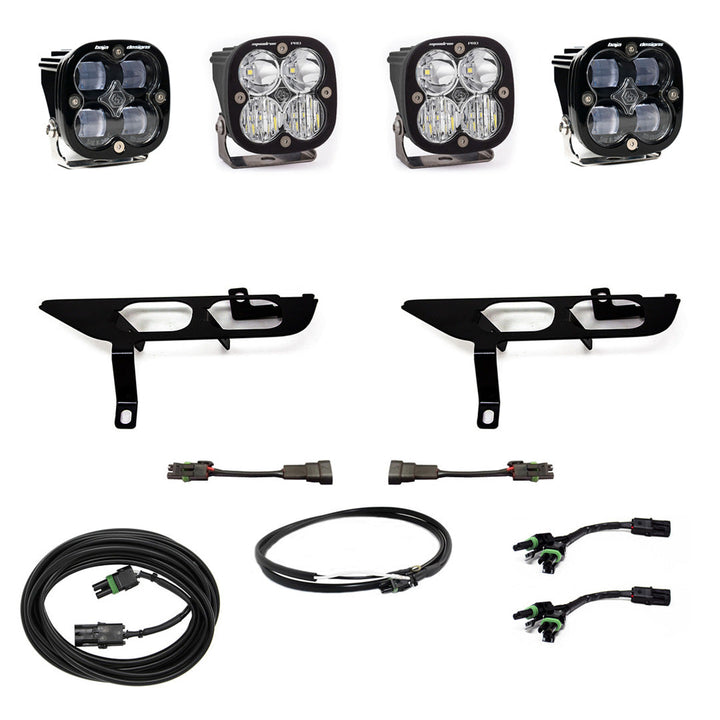

Toggle Kit Includes:
- (2x) Squadron SAE -Clear or Baja Amber
- (2x) Squadron Pro -Clear Driving Combo
- (2x) Mounting Brackets
- (2x) Adaptor Harness (600043)
- (2x) Splitter Harness (613607)
- (1x) Toggle Harness (640139)
- (1x) 55 inch Splitter Harness (613606)
- (2x) Anti-Backfeed Harness (600017)
Upfitter Kit Includes:
- (2x) Squadron SAE -Clear or Baja Amber
- (2x) Squadron Pro -Clear Driving Combo
- (2x) Mounting Brackets
- (2x) Adaptor Harness (600043)
- (2x) Splitter Harness (613607)
- (1x) Upfitter Harness (640093)
- (1x) 55 inch Splitter Harness (613606)
- (2x) Anti-Backfeed Harness (600017)
Squadron SAE Specifications (Per Light):
- Lumens: 2,420
- Wattage/Amps: 29W/2.1A
Squadron Pro Specifications (Per Light):
- Lumens: 4,095
- Wattage/Amps: 41.4W / 3A
The Baja Designs Advantage:
- Satisfaction Guarantee -30-Day Money Back Guarantee
- Limited Lifetime Warranty -Complete Purchase Protection
- ClearView -All The Light, Right Where You Need It
- MoistureBlock -Waterproof, Rain Proof, Submersible
- CopperDrive -Only LED Driven At 100 Percent
- 5000K Daylight -Less Driver Fatigue, Natural Color
Note: uService is Not a feature of SAE products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.
| Lens Color |
Clear |
| Housing |
Hard Anodized and Powder Coated Cast Aluminum |
| Waterproof Rating |
IP69K (Waterproof up to 9ft Pressure Washable) |
| Lens Material |
Hard Coated Polycarbonate |
| Life Span |
49,930 Hours |
Fits: Ford F-150 (2021-2022).
Part #: 447699UP
