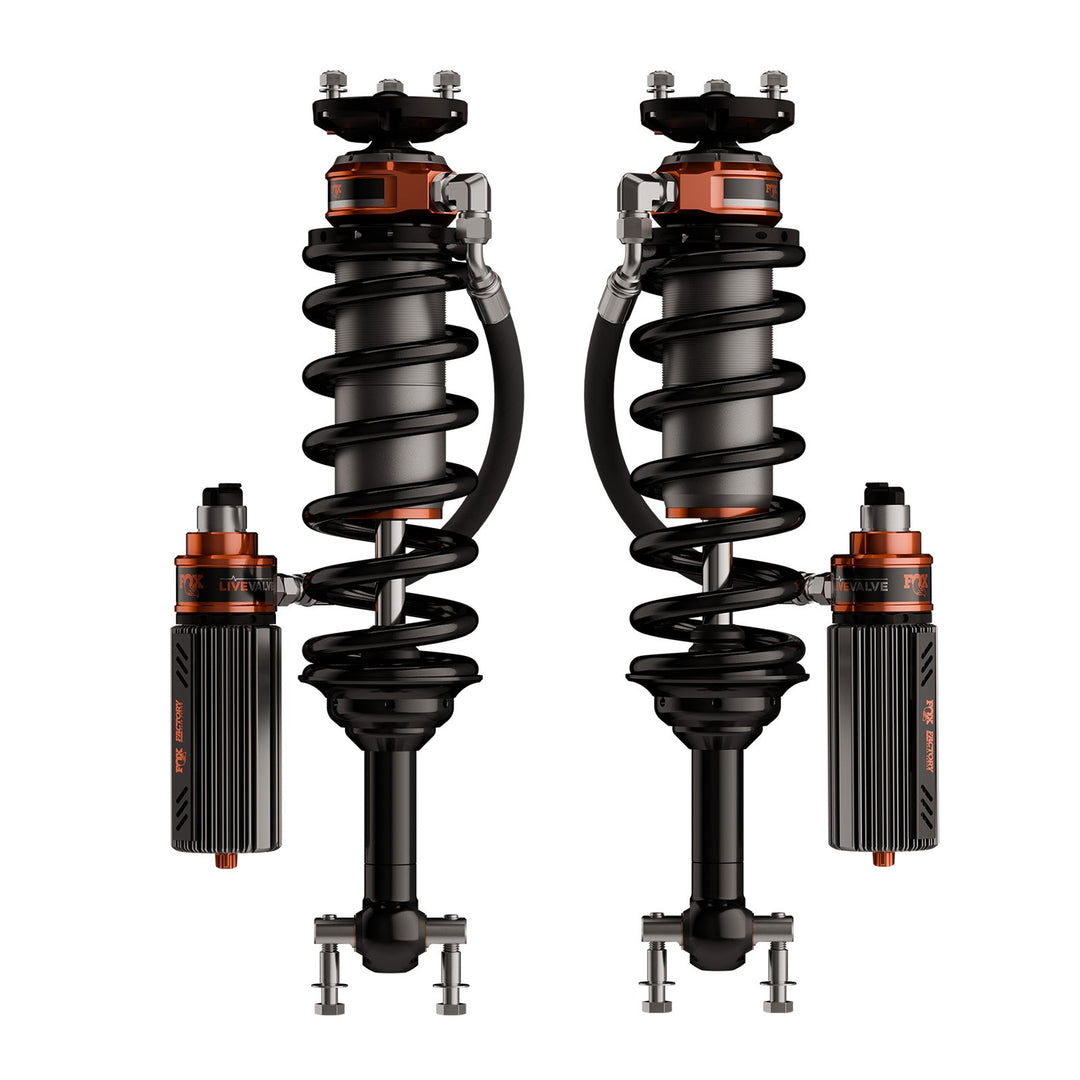

Fox Factory 2021+ Ford Bronco 3.2 Truck Factory Race Series Live Valve Connected Suspension Kit

Built for Bronco owners who head off-road, this Fox coilover is part of the suspension lineup we carry for trail, desert and overland builds.

Specs

• Part number: 883-06-249
• Type: Coilover Shocks
• Brand: Fox
• Fits:
  • 2021-2026 Ford Bronco

Live Valve senses speed and pitch to lock in support on-road, then frees up compliance for ledges, sand, and washouts. That means less dive, less roll, and more tire contact for your Bronco.

Features and Benefits:

• Performance Tuned For Vehicle Specific Application
• Durable Zinc Plated Seamless Alloy Body
• External Reservoir System Dissipates Heat Fast
• Black Anodized CNC Machined Aluminum Components

Details:

• Diameter: 3.2 Inch
• Series: Factory Race
• Top: OEM
• Travel Length: 5.42 Inch (F)/7.97 Inch (R)
• Bottom: Bar Pin(F)/Eyelet(R)
• Extended Length: 24.22 Inch (F)/27.22 Inch (R)
• Collapsed Length: 17.95 Inch (F)/18.45 Inch (R)
• Reservoir Type: Remote
• Shock Type: Coil-Over
• Material: Aluminum
• Warranty: 1 Year
• Sold As: Kit

Dsc evo features Variable Valve Control (vvc) on the high-speed circuit. Unlike most compression adjusters that rely on adding preload, Vvc adjusts leverage to isolate high-speed from low-speed damping precisely.

The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity.

Part #: 883-06-249
