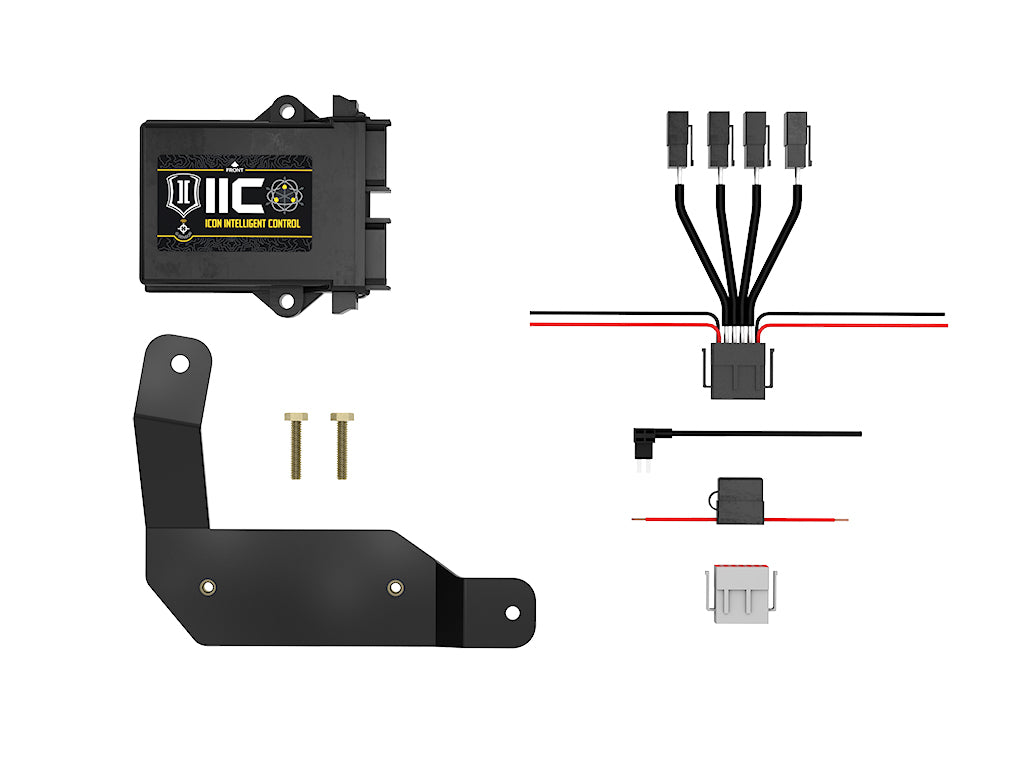

ICON 2014-2026 Ram 2500/3500 HD, ICON Intelligent Control (IIC) Install Kit

Built for Ram 2500/3500 owners who tow heavy and run dirt roads, this ICON electronic damping part is part of the suspension lineup we carry for trail, desert and overland builds.

Specs

• Brand: ICON Vehicle Dynamics
• Type: Suspension Control Module
• Part number: 213500
• Fits:
  • 2014-2026 Ram 2500
  • 2014-2019 Ram 2500
  • 2014-2018 Ram 2500
  • 2014-2020 Ram 2500
  • 2014-2021 Ram 2500
  • 2014-2015 Ram 2500
  • 2015-2016 Ram 2500
  • 2016-2022 Ram 2500
  • 2017 Ram 2500
  • 2017-2019 Ram 2500
  • 2017-2023 Ram 2500
  • 2019-2026 Ram 2500
  • 2021-2026 Ram 2500
  • 2023-2026 Ram 2500
  • 2023-2024 Ram 2500
  • 2023 Ram 2500
  • 2024-2026 Ram 2500
  • 2026 Ram 2500

ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2014-UP Ram 2500 using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install.

The IIC App brings all of this technology together by offering a user-friendly interface to monitor, record, and adjust the system’s performance via Bluetooth connection. Users can easily alter the shocks’ baseline settings for firmness, as well as adjust the sensitivity of vertical “G-Boost” and lateral “Corner Boost” with a few simple taps from their favorite iOS device. The App includes several preconfigured ‘Drive Modes’ (Normal, Desert, and Haul) but also offers the ability for users to create an unlimited number of unique presets using their own custom settings. To top it all off, you can record data from your trip including time, speed, distance and G-Forces for your very own ICONIC Overview.
