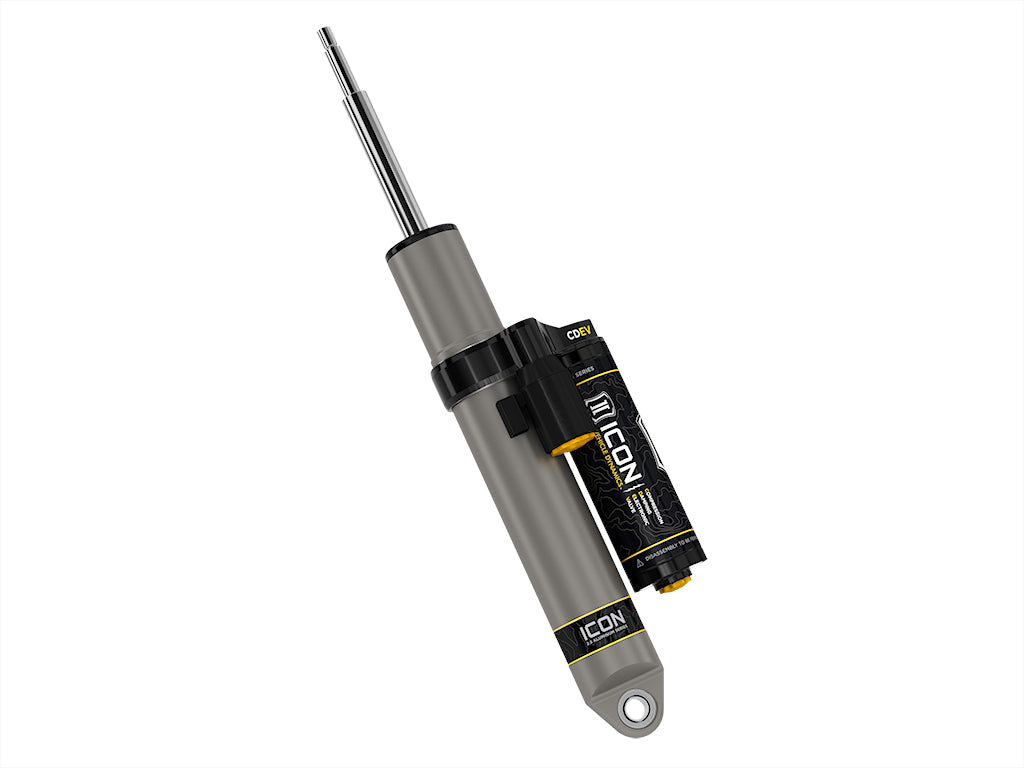

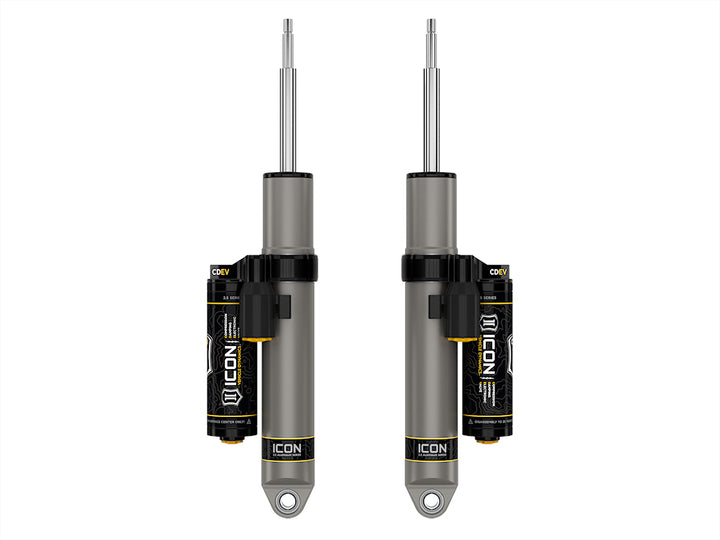

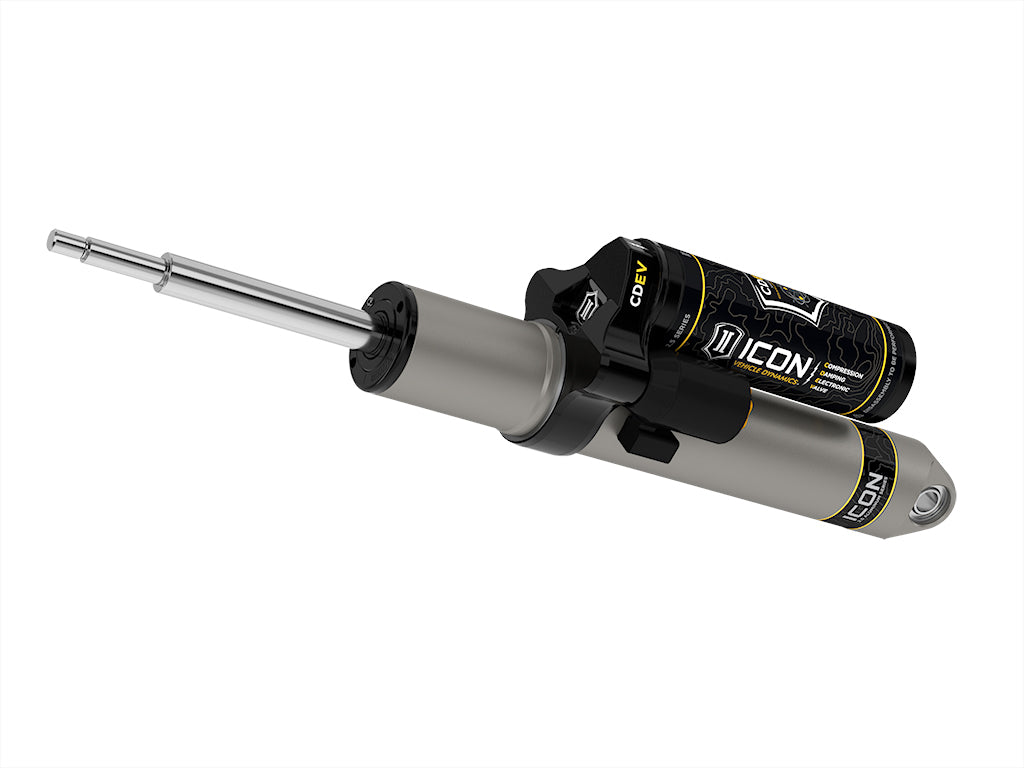

ICON 2014-2026 Ram 2500, w/ ICON .5" Lift Performance Rear Coils, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDEV, Pair

Built for Ram 2500/3500 owners who tow heavy and run dirt roads, this ICON shock is part of the suspension lineup we carry for trail, desert and overland builds.

Specs

• Brand: ICON Vehicle Dynamics
• Type: Shocks
• Part number: 217705EP
• Fits:
  • 2014-2026 Ram 2500
  • 2014-2019 Ram 2500
  • 2014-2018 Ram 2500
  • 2014-2020 Ram 2500
  • 2014-2021 Ram 2500
  • 2014-2015 Ram 2500
  • 2015-2016 Ram 2500
  • 2016-2026 Ram 2500
  • 2017 Ram 2500
  • 2017-2019 Ram 2500
  • 2017-2023 Ram 2500
  • 2019-2026 Ram 2500
  • 2021-2026 Ram 2500
  • 2023-2026 Ram 2500
  • 2023-2024 Ram 2500
  • 2023 Ram 2500
  • 2024-2026 Ram 2500
  • 2026 Ram 2500

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
